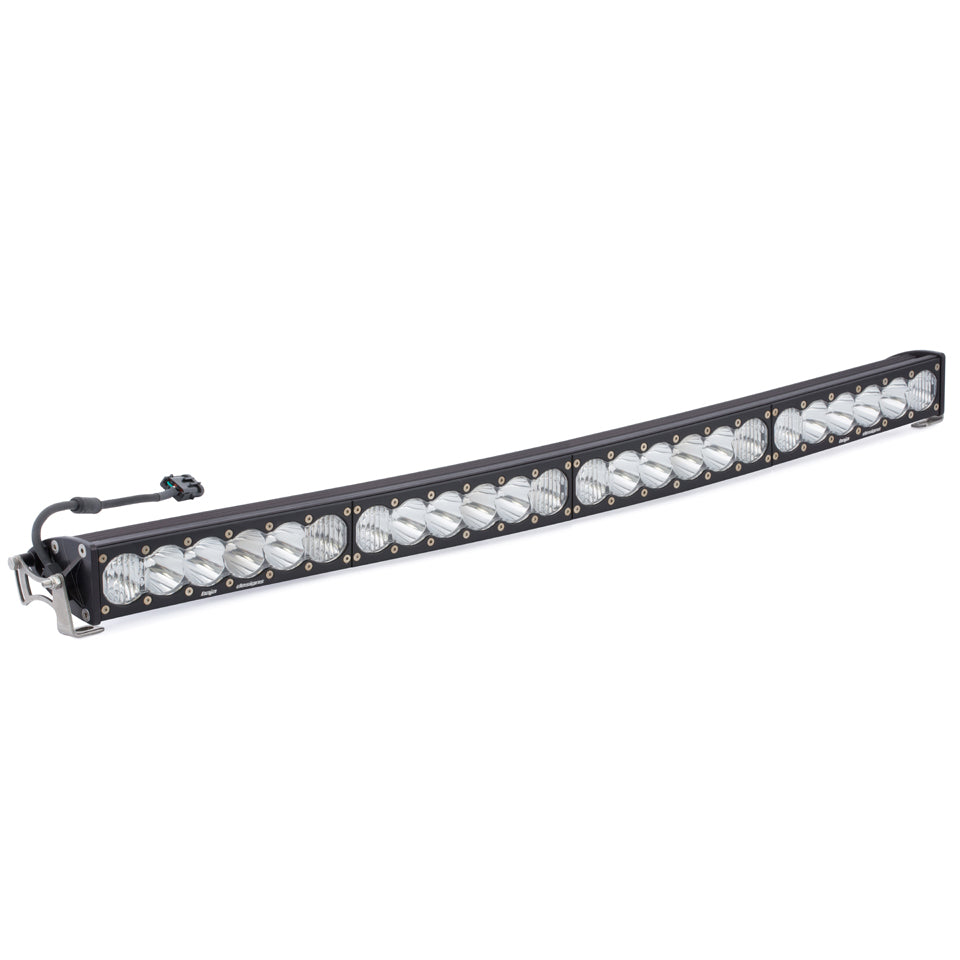

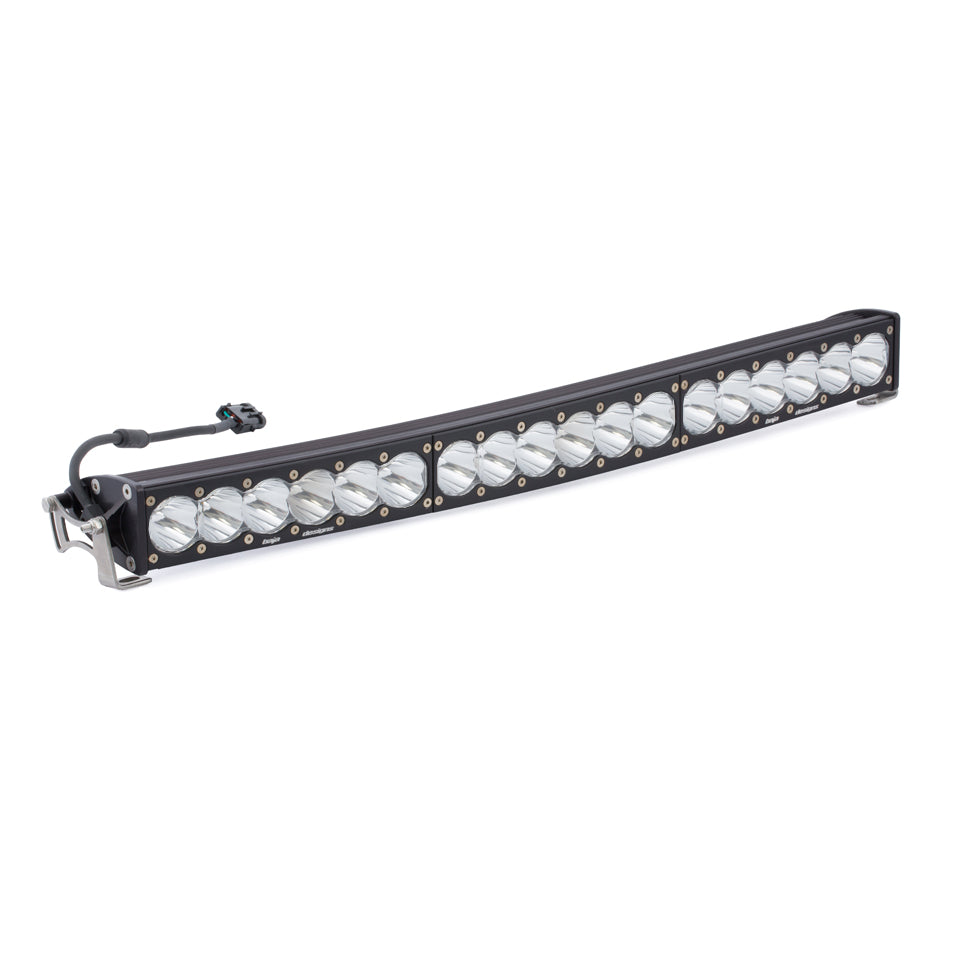

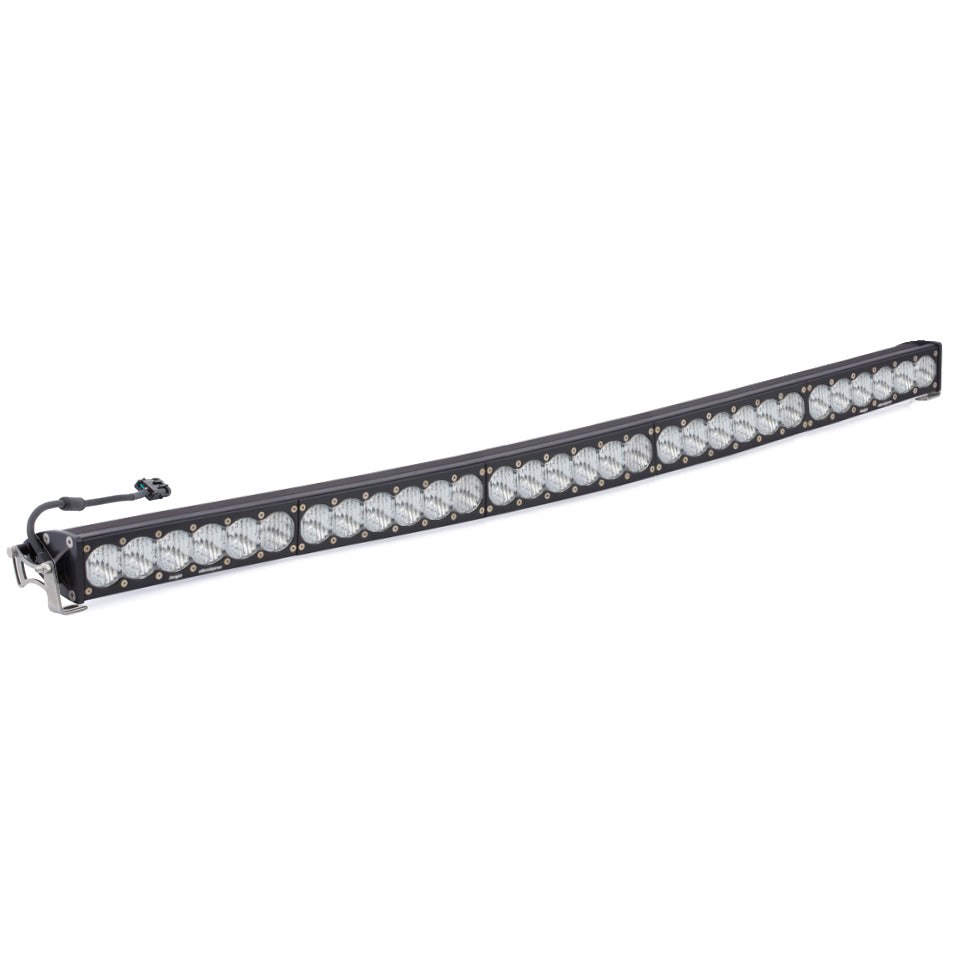

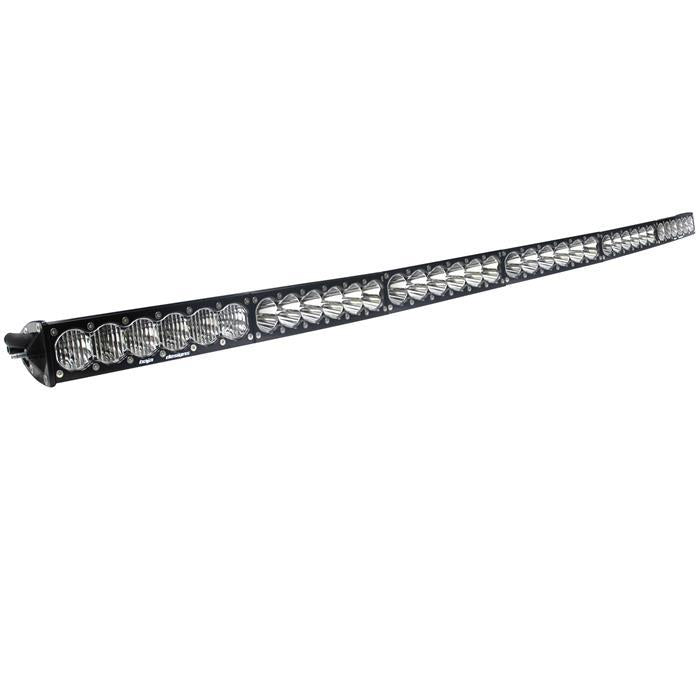

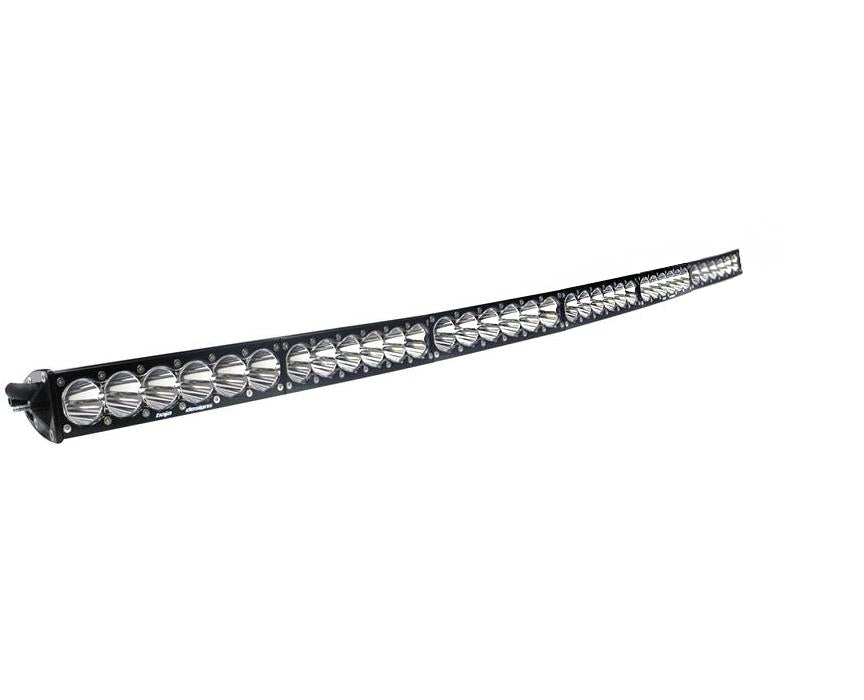

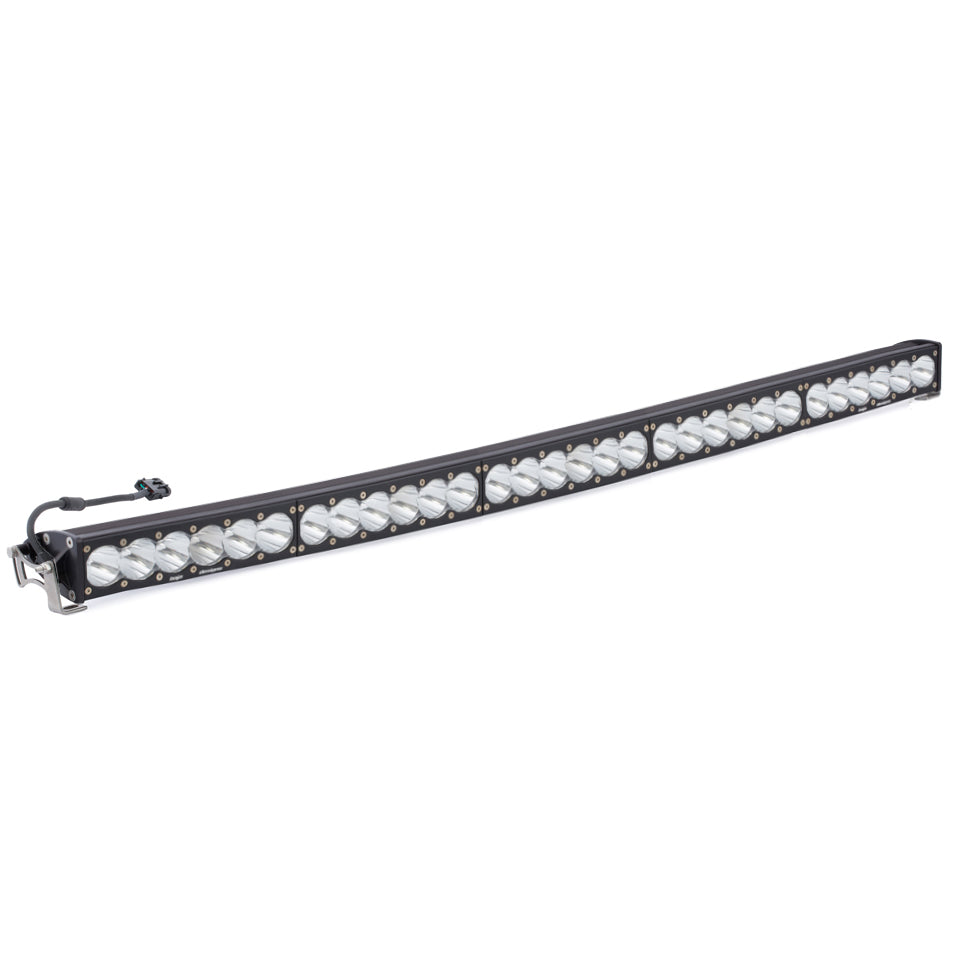

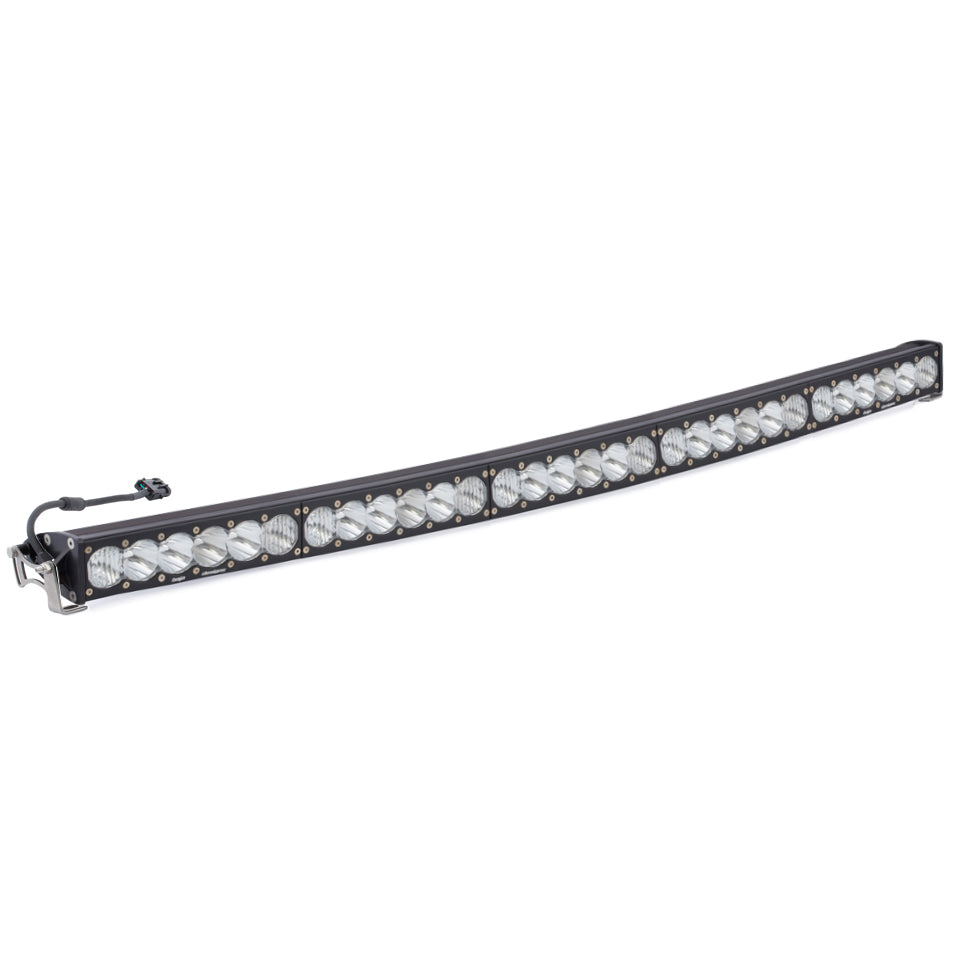

OnX6+ LED Light Bar Arced

523003
  • $1,169.95
  • $1,299.95

The NEW OnX6 Arc Series is the perfect combination of performance and aesthetics. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

Driving/Combo: Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Driving:  BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2) (Also available in amber)

High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Baja Designs Features:

  • Satisfactions Guarantee 30 Day Money Back Guarantee
  • Limited Lifetime Warranty Complete Purchase Protection
  • uService Replaceable Lenses And Optics
  • ClearView All The Light, Right Where You Need It.
  • MoistureBlock Waterproof, Rain Proof, Submersible
  • CopperDrive Only LED Driven At 100 percent
  • 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

  • Lumens: 22,050 Utilizing 18 Cree LEDs
  • Wattage/Amps: 175.5W / 15A
  • Dimensions: 30 x 4.29 x 2.69 inch
  • Weight: 11.45 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft and Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

Includes:
OnX6 LED Light Bar Arc Series
Mounting Brackets

CA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
